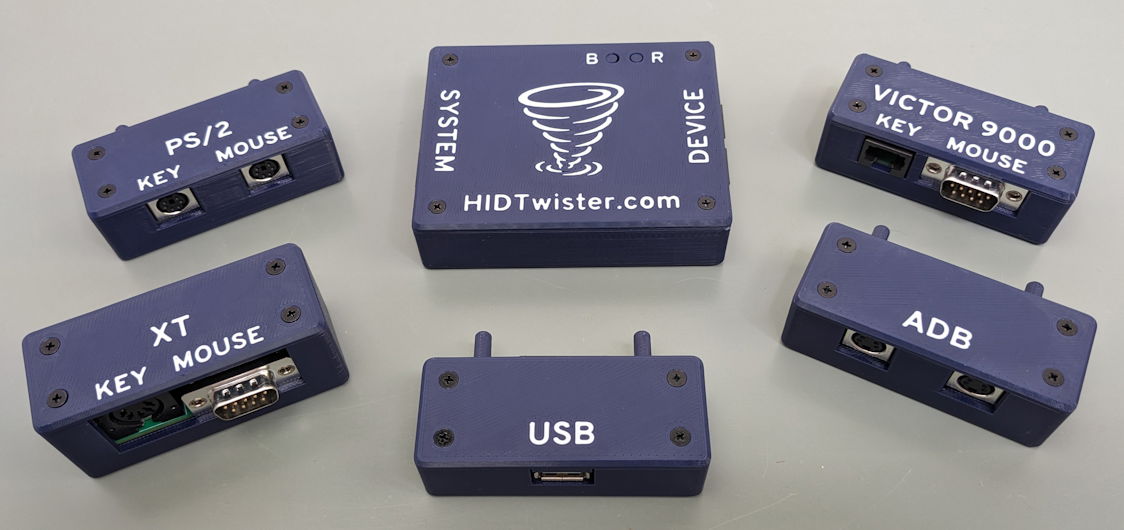

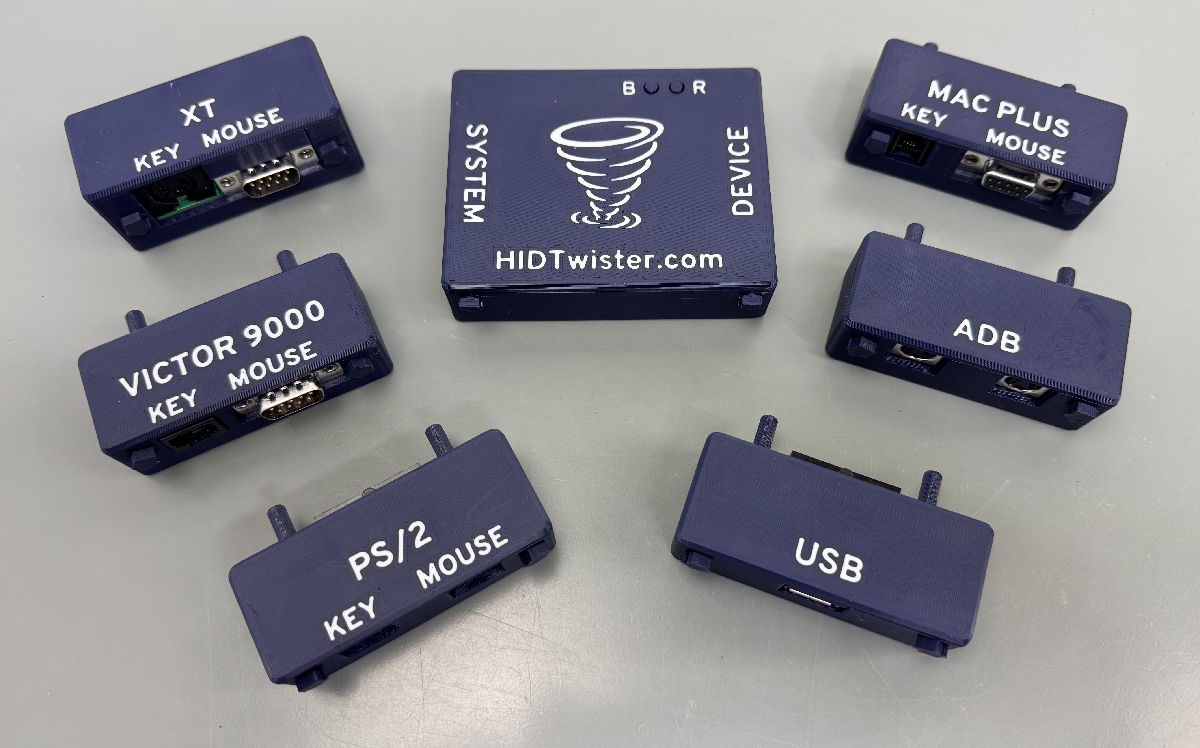

Hook any input device to any system.
Plugs work in either direction.
(Straight-wired cables needed for plug-to-system.)
| Type | Device 1 | Device 2 |
|---|---|---|
| XT | XT Protocol Keyboard | Serial Mouse |
| PS/2 (AT) | PS/2 Keyboard | PS/2 Mouse |
| USB | USB Keyboard and/or Mouse (both via dongle or hub) | |
| Mac Plus/128K/512K | Phone-cord keyboard | DB9 / Apple IIc Mouse |
| ADB (Mac) | ADB Keyboard | ADB Mouse |
| Victor 9000 | Victor Keyboard | Serial Mouse |
| TTLVIDEO | CGA/MDA/Mono Monitor | Serial (for terminal emu) |
| Date | Build | Notes |
|---|---|---|
| 2026/10/28 | LATEST build 467 | Timing tweaks for "special" HP PS/2 mouse. |
| 2026/10/27 | build 466 | Cmd line and menu improvements |
| 2026/10/25 | build 461 | Timing tweaks for Cpq, autoswitch keyboard support |
| 2026/10/23 | build 458 | XT & PS/2 Plugs can be configured to talk the other protocol |
| 2026/10/23 | build 457 | Misc + Mac Plus CapsLock fix 2, show/save keymap -> map, display hex in trace logs |
| 2026/10/19 | build 452 | Fix capslock issue for Mac Plus plug |
| 2026/10/16 | build 451 | Lots of misc + add ttlvideo, C64x2 initial support |
| 2026/10/07 | build 423 | Misc + fix for slow crystal bring-up on some boards |
| 2026/10/05 | build 414 | CGA/MDA/Mono TTLVIDEO Plug + Serial Terminal |
| 2026/10/04 | build 387 | Mac Plus plug (Also supports Apple IIc Mouse) |
| 2026/10/01 | build 379 | ADB Mapping fixes, map command syntax improvements |
| 2026/09/30 | build 373 | Initial shipping release of HID Twister r2 |
License info: link
